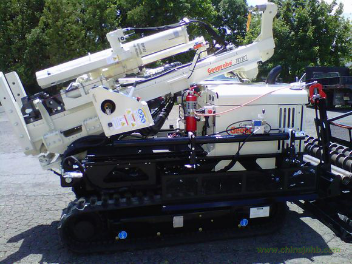

Geoprobe7822DT直推式多功能鉆探車是美國Geoprobe公司專門為土壤地下水污染調查領研發，該設備結構緊湊，功能多樣，重量約為3.5噸，配備58馬力的8缸久保田柴油發動機，液壓達到4000psi，可在一些其他設備采樣受限的區域進行作業。
7822DT的核心部件是GH64液壓沖擊錘，沖擊頻率每分鐘可達1920次，每次沖擊力在20000磅以上。內置六動 頭，可提供雙向旋轉快速路面鉆探、混凝土取芯、進行錨定或螺旋鉆探功能。沖擊錘也具有回拔功能，具有超 過20噸回拔力的絞盤系統。
7822DT配置為主機、1.5英寸鉆桿、2.25英寸鉆桿、2.25英寸雙套管土壤采樣系統、MC5土壤采樣系統、SP16地下水采樣系統、4.25中控螺旋鉆系統、灌注系統等。
7822DT Specifications
|
|
|
Stroke
|
78 in.
|
1,981 mm
|
|
Weight
|
7,555 lb.
|
3,427 kg
|
|
Width
|
60 in.
|
1,524 mm
|
|
Length (folded)
|
133 in.
|
3,378 mm
|
|
Height (folded)
|
99.5 in.
|
2,527 mm
|
|
Height (unfolded)
|
184 in.
|
4,674 mm
|
|
Lateral Movement (side-to-side)
|
25 in.
|
635 mm
|
|
Oscillation
|
+/- 10 degrees
|
|
Foot Travel
|
20.5 in.
|
521 mm
|
|
Extension
|
15.5 in.
|
394 mm
|
|
Down Force
|
36,000 lb.
|
160 kN
|
|
Retraction Force
|
48,000 lb.
|
214 kN
|
|
Hydraulic Pressure (system)
|
4,000 psi
|
276 bar
|
|
Hydraulic Flow Rate (system)
|
40 gpm
|
151 Lpm
|
|
Hammer System
|
GH64
|
|
Percussion Rate
|
32 Hz
|
|
Torque (hammer motor)
|
(see below)
|
|
Rotation Rate (hammer motor)
|
(see below)
|
|
Fuel Capacity (diesel)
|
17 gal
|
64L
|
|
Engine (diesel)
|
Kubota, 4-cylinder turbo
|
|
Engine Power
|
58 hp
|
43 Kw
|
|
Outrigger Extension
|
N/A
|
|
Rear Stabilizer Lift
|
2,000 lb.
|
907 kg
|
|
Ground Speed
|
0-5 mph
|
0-8 kph
|
|
Surface Load
|
4.6 lb/in2
|
0.32 kg/cm2
|
|
Winch Rating
|
2,350 lb.
|
1,066 kg
|
|
Winch Speed
|
0-110 fpm
|
0-34 m/min
|
|
GH64 Hammer Specifications
|
|
|
|
Torque (high torque/low speed)
|
450 ft. lb.
|
610 N·M
|
|
Torque (low torque/high speed)
|
225 ft. lb.
|
305 N·M
|
|
Rotation speed (low speed/high torque)
|
0-250 rpm
|
|
Rotation speed (high speed/low torque)
|
0-500 rpm
|
|
Augerhead Specifications
|
|
|
|
Torque (high torque/low speed)
|
4,000 ft. lb.
|
5,423 N·M
|
|
Torque (low torque/high speed)
|
2,000 ft. lb.
|
2,712 N·M
|
|
Hex adapter
|
1-5/8 in
|
41 mm
|
|
Rotation speed (low speed/high torque)
|
0-75 rpm
|
|
Rotation speed (high speed/low torque)
|
0-150 rpm (GA4000)
|
|
Rotation speed (high speed/low torque)
|
0-750 rpm (GA4100)
|
|
