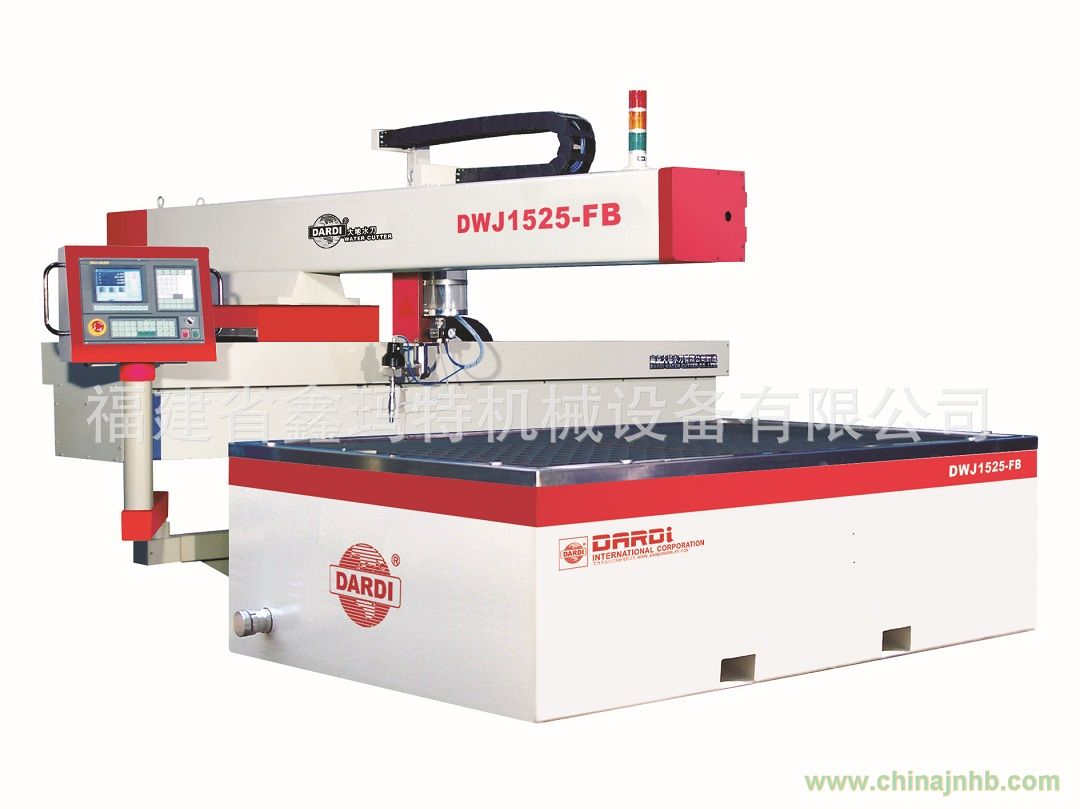

工作臺基本參數 Basic Parameter of the working table
|
工作臺尺寸
working table size
|
1.2m×1.2m
1.5m×1.5m
2.0m×1.5m
2.5m×1.5m
3.5m×1.5m
4.0m×1.5m
3.0m×1.8m
4.0m×1.8m
|
|
切割精度/Cutting accuracy
|
±0.1mm
|
|
重復精度/Repeating accuracy
|
±0.02
|
|
X軸運行速度/Running speed of X axis
|
0—20000mm/min
|
|
X軸電機功率/Motor power of X axis
|
0.75KW
|
|
Y軸運行速度/Running speed of Y axis
|
0—20000mm/min
|
|
Y軸電機功率/Motor power of Y axis
|
0.75KW
|
|
Z軸運行速度/Running speed of Z axis
|
0—1000mm/min
|
|
Z軸電機功率/Motor power of Z axis
|
0.20KW
|
|
Z軸行程/Z axis Stroke
|
200mm
|
|
電機/Motor
|
松下交流伺服電機/Panasonic AC Servo
|
|
運動部件
Running part
|
臺灣“HIWIN”直線導軌/滾珠絲桿”保證設備運行速高達20000mm/min
Screw Mandrel and Lead Rail brand named HIWIN, ensure the running speed up to 20000mm/min
|
控制電柜 CNC controller
|
控制系統/Controller system
|
CNC 驅動器/CNC Controller
|
|
切割軟件/Cutting software
|
（NC Studio V-9.38）.基于windows xp
（NC Studio V-9.38）: based on windows xp
|
|
操作界面
Operation language
|
中文/英文可任意切換
Chinese/ English
|
|
電源/Power
|
三相 220V/380V/415V 50Hz
Thress phase 220V/380V/415V 50Hz
|
|
設備外形尺寸/Machine surface diameter
|
1700×1300×2000mm
|
|
重量/Weight
|
1200Kg
|
|
機體設定區域 /Machine setting are
|
≧7m2
|
|
額定壓力/Rated voltage
|
380MPa/psi
|
|
工作壓力/Working pressure
|
320-360MPa/psi
|
|
增壓比/Boost ratio
|
20:01
|
|
電壓/Voltage
|
220V/380V/415V 50Hz
|
|
總功率/Total power
|
30kw
|
|
混砂管內孔尺寸/Size of nozzle
|
0.76mm/1.02mm
|
|
水噴嘴（寶石）直徑/diameter of orifice
|
0.30mm
|
|
最大用砂量/max. sand capacity
|
0-300g/min
|
|
最大沖程數/Max. stroke
|
50 times/min
|
|
水源/Water
|
